Anyway, let’s proceed with today’s post 🙂 I want to share how you can update your solrconfig.xml or managed-schema in your running SolrCloud instance. In this example, we are running SolrCloud in AKS (So no SearchStax here 😉 ). I have an earlier post on how to set up SolrCloud in AKS – Setup SolrCloud for Sitecore 10 in Kubernetes. There is a section where we upload the configurations – Configsets as zip files in the post. Now, that is the approach we will use in our example 🙂

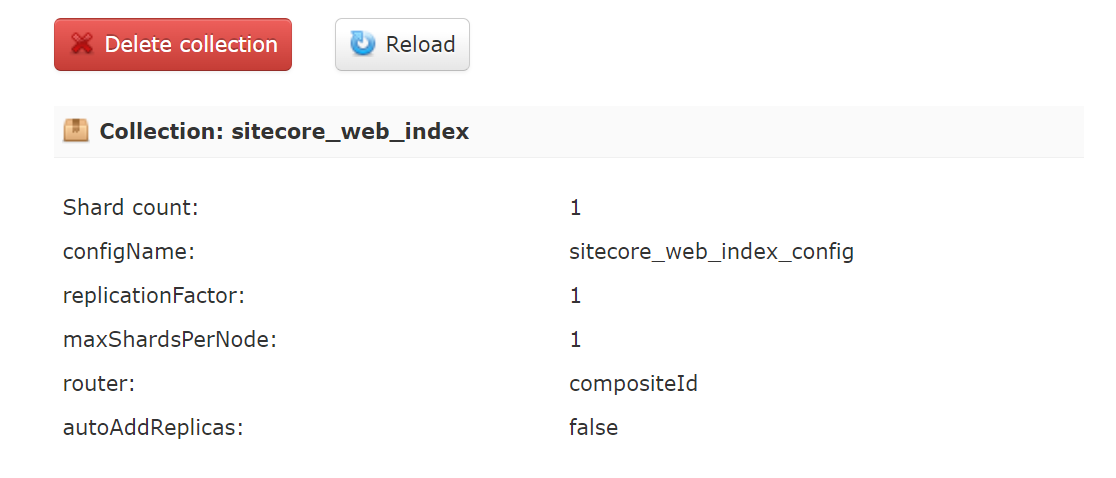

As you know, SolrCloud has collections, and each collection is “pointing” to a “configuration” – Configsets. You can quickly locate it. Just open solr in your browser and locate a collection. Click on it, and you should see something like this:

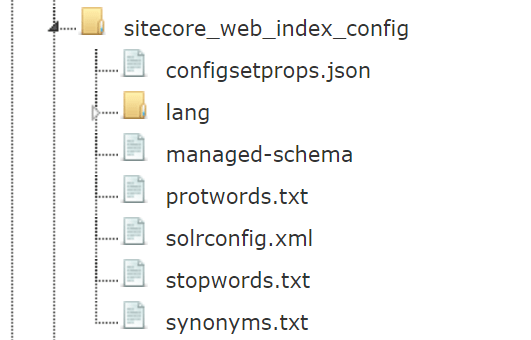

You normally give the “configurations” the same name as your collection. For instance, the collection sitecore_web_index will point to a “configuration” called sitecore_web_index_config:

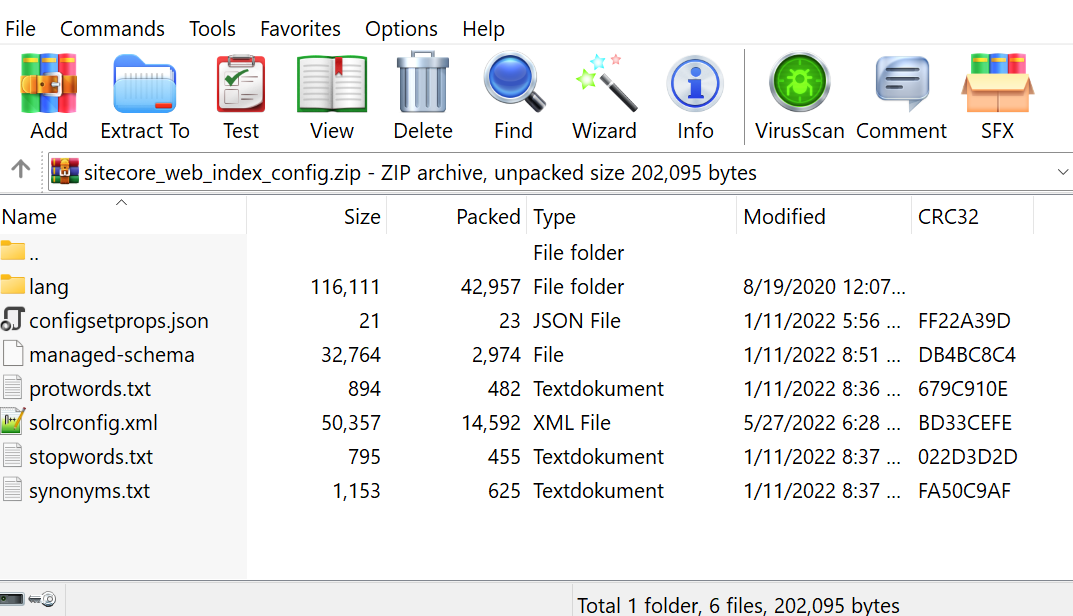

As I mentioned before, we have our configurations in zip files. So let’s open up our sitecore_web_index_config zip file. Update the solrconfig.xml file and zip it again:

The next part is to upload the zip file to our SolrCloud instance. To do this, we will use the Solr API – ConfigSets API – https://solr.apache.org/guide/8_8/configsets-api.html

Jeremy Davis and his excellent work have already done the heavy lifting – An example of a SolrCloud Docker container for Sitecore v10. Let’s use parts of the excellent script, MakeCollections.ps1, to make a script. We shall call it…

Not Mini-Me, Dr. Evil. We will name “him” – UpdateSolrCloudInKubernetes.ps1

$solrHostname = "localhost"
$solrClientPort = 58105

$coreConfigFolder = "C:\Projects\SampleProject\docker\build\solrcloud\schemas"

function Test-SolrConfigSetExists
{
    param(
        [string]$solrHost,
        [int]$solrPort,
        [string]$configSetName
    )

    $url = "http://$($solrHost):$solrPort/solr/admin/configs?action=LIST"

    $result = Invoke-WebRequest -UseBasicParsing -Uri $url
    $match = $result.Content.Contains("`"$configSetName`"")

    return $match
}

function Upload-SolrConfigSet
{
    param(
        [string]$solrHost,
        [int]$solrPort,
        [string]$zipFile,
        [string]$configName
    )

    $exists = Test-SolrConfigSetExists $solrHost $solrPort $configName

    if( $exists -ne $true )
    {
        Write-Host "Uploading config set $configName"

        $uri = "http://$($solrHost):$solrPort/solr/admin/configs?action=UPLOAD&name=$configName"

        Invoke-RestMethod -Uri $uri -Method Post -InFile $zipFile -ContentType "application/octet-stream" | Out-Null
    }
    else
    {
        Write-Host "Config set $configName exists - skipping"
    }
}

function Test-SolrCollectionExists
{
    param(
        [string]$solrHost,
        [int]$solrPort,
        [string]$solrCollectionName
    )

    $url = "http://$($solrHost):$solrPort/solr/admin/collections?action=LIST"

    $result = Invoke-WebRequest -UseBasicParsing -Uri $url
    $match = $result.Content.Contains("`"$solrCollectionName`"")

    return $match
}



function Update-SolrCollection
{
    param(
        [string]$solrHost,
        [int]$solrPort,
        $solrCollectionName,
        $solrCollectionConfig
    )

    $exists = Test-SolrCollectionExists $solrHost $solrPort $solrCollectionName

    if( $exists -eq $true)
    {
        Write-Host "Updating collection $solrCollectionName with config $solrCollectionConfig"

        $url = "http://$($solrHost):$solrPort/solr/admin/collections?action=MODIFYCOLLECTION&collection=$solrCollectionName&collection.configName=$solrCollectionConfig"
        Invoke-WebRequest -UseBasicParsing -Uri $url | Out-Null
    }
    else
    {
        Write-Host "Collection $solrCollectionName does not exists - skipping"
    }
}

Upload-SolrConfigSet $solrHostname $solrClientPort "$coreConfigFolder\sitecore_web_index_config.zip" "sitecore_web_index_updated_config"
Update-SolrCollection $solrHostname $solrClientPort "sitecore_web_index" "sitecore_web_index_updated_config"

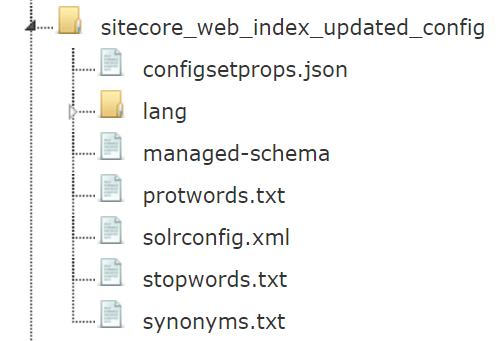

The interesting part is the 2 lines at the bottom, Upload-SolrConfigSet and, Update-SolrCollection. The first method will upload the Configsets, sitecore_web_index_config.zip, to our SolrCloud instance. An important note, you cannot overwrite an existing Configset. That’s why we have named it sitecore_web_index_updated_config. Let’s see the result 🙂

Wonderful, we have the configuration in place. Next will be to point the collection sitecore_web_index to the new configuration sitecore_web_index_updated_config. We will do this with the following method Update-SolrCollection. If you look at the method in the Powershell script, notice the parameter MODIFYCOLLECTION. This will allow us to update our collection and re-point to our new configuration using the parameter collection.configName.

In this example, we are port-forwarding to the SolrCloud. The excellent tool Lens, makes it so easy for us. We have to locate the solr-service(in the Kubernetes cluster), and by “clicking” the service port link. It will trigger an automatic port-forward and open our browser to a forwarded port 🙂

It gives us the following URL http://localhost:58105/solr/#/
Now we just have to update the script with the port number and run the script 🙂

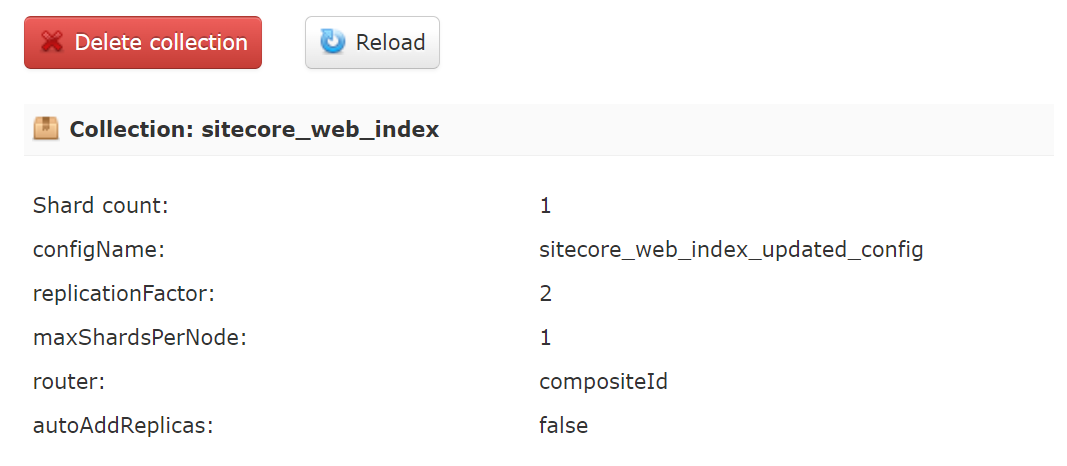

Let’s have a look if the collection is pointing to our new configuration

Success!

That’s all for now folks 😊
